DUAL73MPWPS

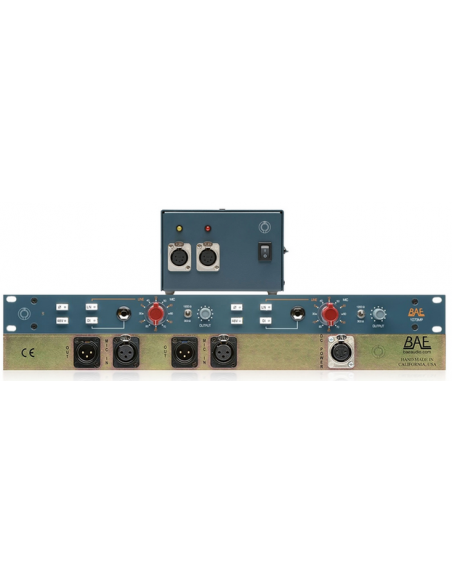

BAEdos previos de micro 1073 en rack con fuente externa sin EQ doble entrada DI, clase A pura, transformador CarnHill
Frequency Response 10Hz to -3dB at 55kHz Mic Input Impedance ≈1200/300 ohms Line Input Impedance 10k ohms DI Input Impedance ≈150k ohms Output Impedance 65 ohms Common Mode Rejection Ratio 100dB min @ 60Hz Maximum Output Level +27.4 dBu @ 600Ω Power Requirements 115/230 VAC, 30W Gain dB 0 to 71 dB Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth Weight (Single/Dual) 8 LBS / 3.63 KG 10 LBS / 4.54 KG Dimensions (Inches) 19W x 1.75L x 9D
