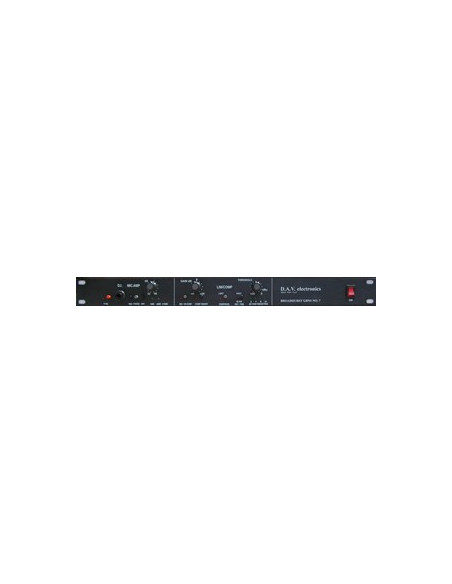

DAV BG NO 7

previo micro con DI con compresor/limitador Low noise and distortion [Decca 1977 circuit brought up to date] Recovery time switched, 1secs and 0.3secs Threshold calibrated in dBu ref. output level LED metering Limiter/compress On/off switch Overall low noise and distortion. Input gain control to +20dB Frequency response: 10Hz - 150KHz ± 0.25dB Mic gain range: 22dB - 66dB in 4dB steps.[pad in -4dB - 40dB] Distortion: Less than 0.01% Typ, 0.001% 1KHz @ +20dBu o/p High pass filter: 68Hz @ 12dB per octave (Switchable bothchannels) Noise: 25 microvolts [-110dB ref +20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain]. Phase reversal: Switchable 48v phantom: On channel 1 Level indication: Red LED +18dB Green LED +8dB Green LED 0dB 26dB pads: On channel 1 Clipping level: +29 dBu D.I. input: Channel 1 High impedance -[1.8 Meg Ohms] Connectors: IEC mains Input - XLR x 2, Jack x 1 (DI Input) Output - XLR x 2 (bal), Jack x 2 (unbal) D.I. gain range: Channel 1 only -8 > 36dB in 4dB steps Dimensions: 19" 1U rack mount. Depth = 150mm
