JDI

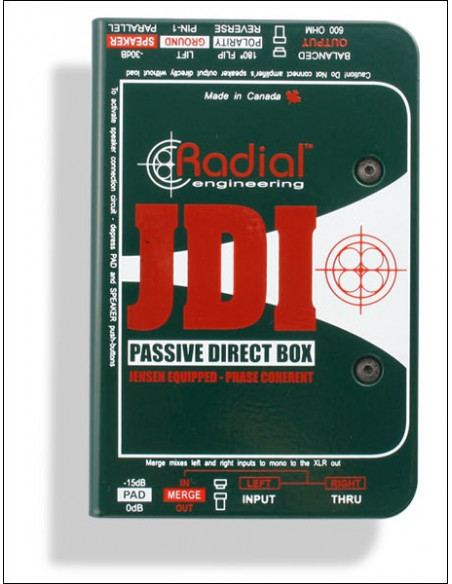

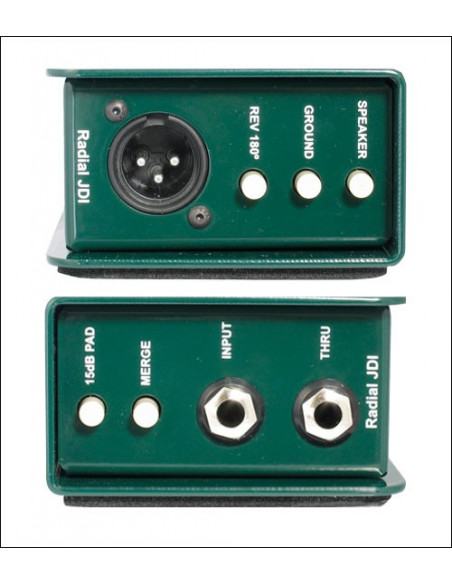

Modelo clásico de DI para directo y estudio Specifications RADIAL JDI Audio circuit type: Passive, transformer based Number of channels: Single channel (mono) Frequency response: 20Hz ~ 20KHz (± 0.2dB) Dynamic range: 135dB Maximum input: +21dB @ 20Hz ~ 20kHz Total harmonic distortion: 0.05% from 20Hz ~ 20kHz @-10dB Phase deviation: 0.3° @ 100Hz; 3° @ 20Hz Input impedance: 140k Ohms, unbalanced Output impedance: 150 Ohms, balanced Features Transformer: Jensen JT-DBE, 12:1 ratio Shield: Dual Faraday, mu-metal can Input pad: -15dB Merge: Sums left & right sources to mono 180° polarity reverse: Inverts absolute phase Ground lift: Disconnects pin-1 at XLR output XLR configuration: AES standard (pin-2 hot) Speaker filter: -30dB pad and band-pass filter Connectors: 1/4" in & thru, XLR-M out General Size: (W x H x D) 84 x 127 x 48mm Weight: 0.70 kg
