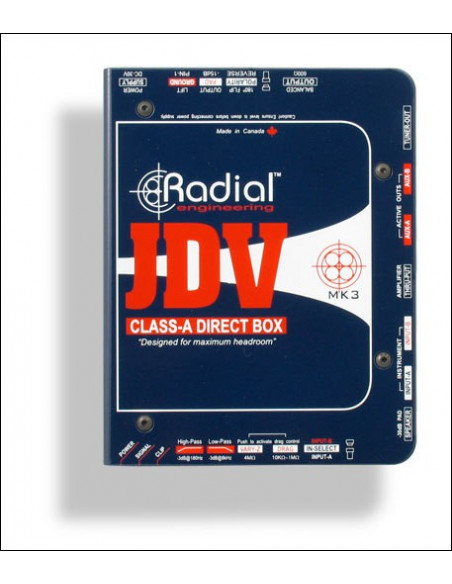

JDV

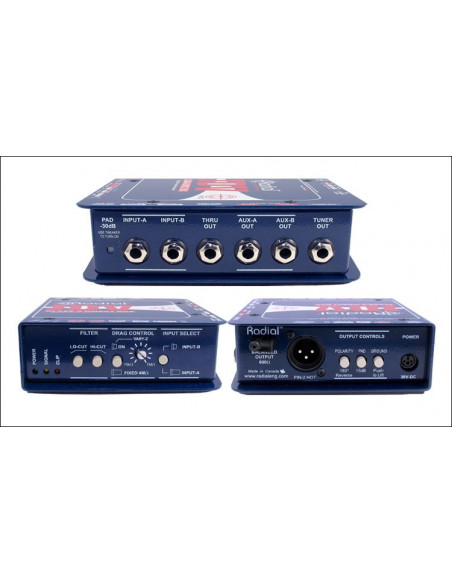

Audio circuit type: Active, class-A, non-feedback circuit Frequency response: 20Hz ~ 20kHz (± 1 dB) Signal to noise ratio: 86dB @ 0dBm output Dynamic range: 104dB Noise floor: -86dBu Equivalent input noise: -89dBu Maximum input: +16dBu Phase deviation: +1º at 20Hz | 0º at 1kHz | -7º at 20kHz Total harmonic distortion: 0.008% @ -22dBu Inter-modulation distortion: XLR out: 0.019%; AUX outs: 0.005% (DIN standard) Input impedance (Drag on): Variable from 10k ~ 1 mega-Ω, unbalanced Input impedance (Drag off): 3.9 mega-Ω for passive piezo transducers Output impedance: XLR out: 600Ω; ¼" AUX outs: 1kΩ Features Output pad: -15dB Polarity: 180º signal polarity reverse switch Ground lift: Disconnects pin-1 at XLR output Low-Cut filter: -3dB @ 75Hz High-Cut filter: -3dB @ 8kHz Speaker pad & filter: -30dB pad and band-pass filter XLR configuration: AES standard (pin-2 hot) General Power: +42VDC external supply included
