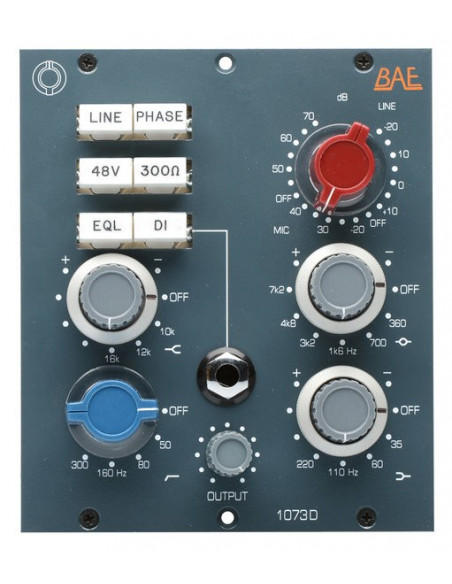

1073D

Frequency Response 10Hz to -3dB at 55kHz 3 Band Equaliser HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz High Pass Filter 50Hz, 80Hz, 160Hz & 300Hz Mic Input Impedance ≈1200/300 Ω Line Input Impedance 10k Ω DI Input Impedance ≈150k Ω Output Impedance 35 Ω Common Mode Rejection Ratio 100dB min @ 60Hz Maximum Output Level +27.4 dBu @ 600Ω Power Requirements +/- 16VDC - 120mA Gain dB 0 to 70 dB Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth Weight 5 LBS / 2.72 KG Dimensions in Inches (Module/Rackmount) 4.5W x 5.25H x 5.5D
